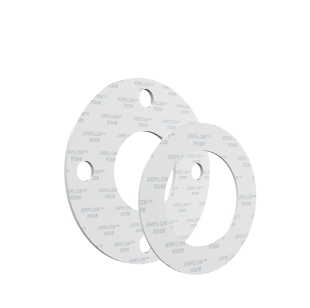

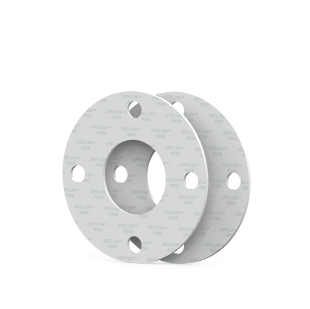

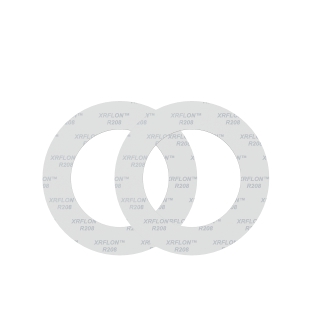

XRFLON? R208
Filler:Barium sulphate
Color:Grey

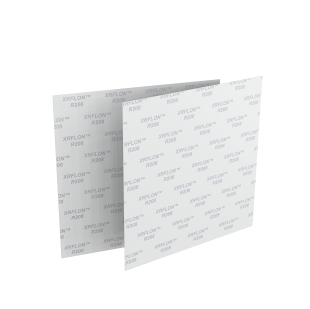

Size:Sheet (RF208): 500*500mm;1500*1500mm,Gasket (R208): support customization, can be provided according to the national standard flange size
Temperature Range:-268℃ up to +260℃
Tensile Strength（ASTM F1708）:＞14MPa
Compressibility (ASTM F36):12%
Recovery (ASTM F36):＞40%
Creep Relaxation (ASTM F38 B):10%
Operating Pressure:8.3MPa
XRFLON? R208
XRFLON? R208 is a high-performance modified gasket made from polytetrafluoroethylene (PTFE) resin filled with high-quality barium sulfate. The R208 is subjected to repeated roller pressing, creating a highly fibrillated structure. And inorganic fillers are more homogeneously blended with PTFE resins, ensuring the R208 has more stably physical and mechanical properties, minimizing creep relaxation and cold flow problems associated with traditional PTFE gaskets.
XRFLON? R208 has Excellent sealing properties and highly resistant chemical and mechanical properties. It is suitable for most chemical applications and has excellent sealing properties, especially in strongly alkaline applications.
Advantages:
Suitable for service with a wide variety of aggressive fluids. Including moderate acids and strong caustics, solvents, refrigerants, hydrogen-peroxide, water, steam, carbon oxygen compounds etc.
The high purity of this gasket sheet makes it excellently suitable for the food and pharmaceutical industry.
Excellent fault tolerance, it to compensate for minor damage or unevenness in the flange surface.
Suitable for fragile flanges (FRP, ceramics, plastics), pipe flanges.
Quick and easy to install, no residue when replacing.
Easy to identify by color, reducing misuse.
